The FlipKeyboard application turns your Flipper Zero and FlipBoard into a MacroPad Keyboard. It also becomes a musical light-up keyboard that you can use to play songs. It supports both USB and BLE connections. Automate repetitive typing tasks with the press a button on the FlipBoard! The application is written in C and uses the FlipBoard common code for the majority of the functionality.
You can order your FlipBoard from @MakeItHackin using tindie or Etsy. Be sure to also join our Discord server.
Make sure your FlipBoard is connected to your Flipper Zero. On your Flipper Zero, press the Ok button. Scroll down to Apps and click the Ok button. Select the GPIO folder. Select the FlipBoard Keyboard application. You should see startup splash screen for a few seconds reminding you to connect the FlipBoard and then the FlipBoard LEDs will do their start-up sequence.
Go to Configure application in the app menu to setup how each action works. You’ll see all of the different button combos listed (for example "Action 3" is pressing button 1 and button 2 at the same time). Press Ok to select the Action to configure.
The Press color option changes the button color when it’s pressed. If you pick a combo button, all the buttons in that combo will change color.
The Release color option changes the button color when it’s not pressed. This option doesn’t work for combo buttons.
The Music note option changes the sound to play when the button is pressed. You can pick Off if you don’t want any sound.
The Keystroke option adds a key to press when the button is pressed. You can pick None if you don’t want any key to be pressed. There is also options Msg1, Msg2, Msg3, Msg4 which will type the message you have set in the "Message 1-4" option. The option Delay will pause for 100ms. The keys Ctrl, Shift, Alt and Gui are modifiers that will stay pressed until the next key. If you press Ok on the Keystroke, you will get a custom keyboard to pick the key. You can press Back if you decide to not change the key.
NOTE: For this application, not all keys are on the on-screen keyboard; you may need to use the Flipper Zero's Left and Right buttons on the "Keystroke" option to access some keys options.
NOTE: You can remove a Keystroke by selecting None as the key. Currently this change only takes effect after you quit the application and restart it. In a future version, this will take effect when you go to the application main menu.
The Count is how many times to press the key (or repeat the delay).
The "Message 1-4" option changes the text to send (NOTE: you should also use "Add Keystroke" and choose Msg1-Msg4 to send the message). If you want to erase a message, replace the message with a Space then press save.
Make sure your FlipBoard is connected to your Flipper Zero. Make sure the qFlipper application is NOT running. Choose the Start application option to launch the app. Press the buttons to see the LEDs change color & hear the tones get played. If your computer is connected to your Flipper Zero via USB, you should see keystrokes and Messages get entered on the computer. If you computer is NOT connected to your Flipper Zero via USB, then BLE will be used to send the keystrokes and Messages to the computer.
To enable BLE, make sure no applications are running on the Flipper Zero. Then go to Settings, Bluetooth and select On. You can also choose Unpair All Devices from this menu.
To pair a BLE device, run the FlipKeyboard application on the Flipper Zero. Make sure the USB cable is NOT plugged in, then choose Start application. On your device (phone, computer, etc.) choose Bluetooth pairing. The device should show up as BadUSB <flipper name>. On your Flipper confirm the pairing code is correct and click Ok, then click confirm on your device. The device should now be paired.

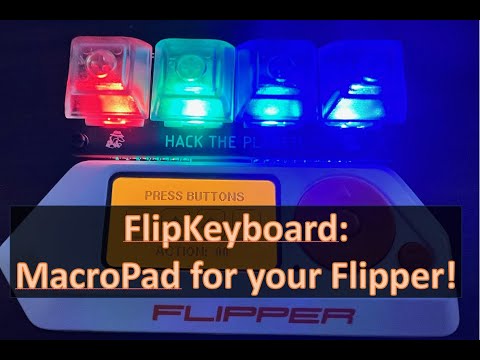

Flipper Zero: Customizing the FlipKeyboard app
- Advanced data entry
- Play a song; Happy Birthday / Jingle Bells!
- Learn about the file format of the configuration files
- Edit the Message that is typed
- Write a custom button action for when button 3+4 are pressed
- Change a Keystroke button
- Add a new Keystroke row
- Add a new startup sequence
- Version 3.9 : Fix hanging issue on new FW. (Free popup on exit)
- Version 3.8 : Some keys not rendering in Keystroke selector.
- Version 3.7 : Fix issue were invalid memory was getting freed.
- Version 3.6 : Show "BLE" or "USB".
- Version 3.5 : Show FlipKeyboard title when app is running.
- Version 3.4 : Don't send MSG1-4 if Keystroke is set to any key.
- Version 3.3 : Add support for BLE.
- Version 2.6 : Default configuration on first load.
- Version 2.5 : Splash screen.
- Version 2.4 : Improved LED driver.
- Version 2.3 : Add additional keystroke buttons.
